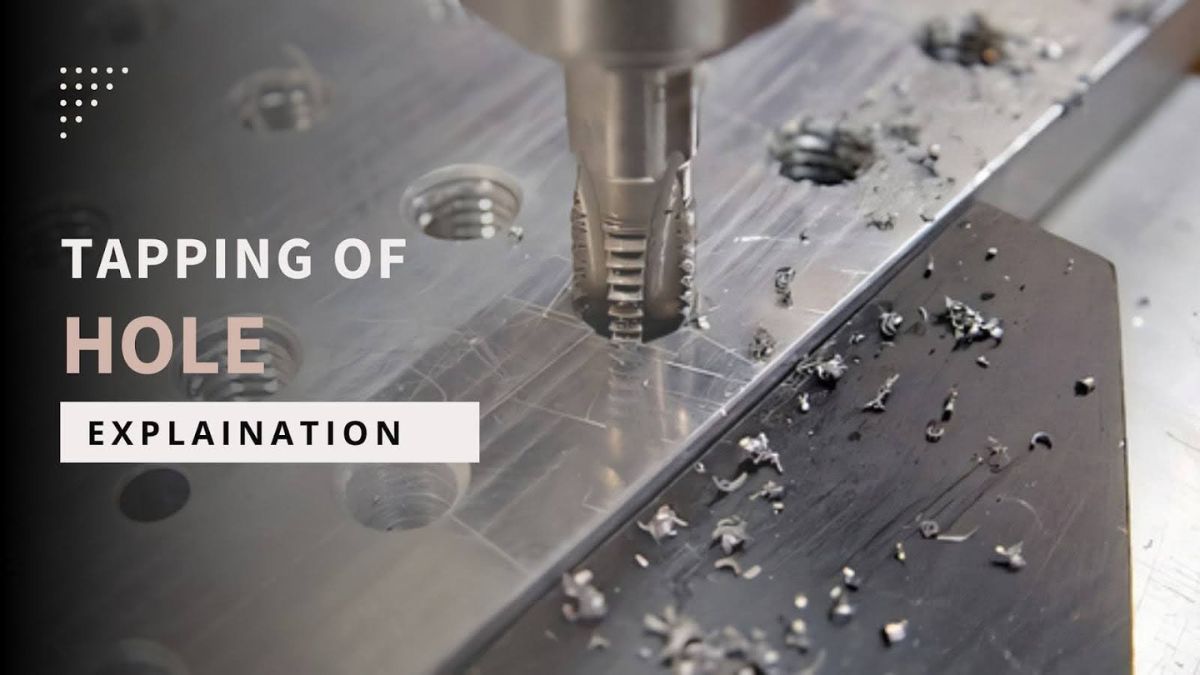

Tapping of Holes: Definition, Process, and Tools

Published

on

Tapping

Internal threads are a crucial assembly feature in mechanical systems and products, which are useful to join parts together. There are different methods of internal threading; tapping is one of them.

Hole tapping refers to the proces of creating internal threads in pre-drilled holes, using specialized tools called “taps”. These tools are either attached to CNC machines or operated manually with tapping handles.

To get the complete insights, read this article till the end. We will discuss what a tapped hole is,  types of machining taps, the tapping process, and more.

What is Meant by a Tapped Hole?

Tapped holes

A tapped hole is a pre-drilled hole, in which the threads are formed or cut with a tapping tool rated for the desired size and thread pitch. First, a hole with a slightly smaller diameter than the threads is drilled, and then the tapping tool enters the hole to create the thread grooves. The purpose of this hole is to accept a bolt, screws, or fastener and engage securely with it. Moreover, both through and blind holes can be tapped.

The sizes of tapped holes are similar to the crosspinding tool size, which are governed by ISO 68-1, ISO 724, and ISO 965. A size designated by the notation “M (nominal diameter) × pitch”. For example, M10 x 1.5. You can easily achieve an accuracy of ±0.150 mm in tapped holes, which can be further enhanced with the use of the right tool material and tapping force.

Tapped Hole Vs Threaded Hole: Are They Same?

tapping vs threading

They are not exactly the same. A threaded hole refers to a broader range, defined as internal threads created by any kind of tool, such as thread mills, single-point cutters, taps, thread rolling dies, and thread inserts. You can create threads in almost all types of holes in machining.  On the other hand, tapped holes are the threaded holes created by the use of taps.

Let’s look at the head-to-head comparison of tapped hole vs thread in the table below.

Feature Tapped Hole Threaded Hole
Process Created by drilling followed by tapping. It can be created by tapping, cutting, forming, or rolling.
Tools Tap (cutting or forming). Tap, thread mill, thread inserts, or forming tools.
Thread Depth In blind holes, depth does not extend to the bottom of the hole The thread can extend fully to the bottom with thread machining and other methods.
Strength Threads are cut into the material, which may reduce strength. Formed threads can be stronger as the material’s grain structure remains unchanged.
Applications Mounting brackets, enclosures, and electronic hardware. Heavy machinery, hydraulic systems, pressure vessels, automotive & aerospace fittings, etc.
Cost & Time  It is more cost-effective and quicker to produce. Relatively higher, especially in small volumes.
Material Suitable for softer materials like aluminum, mild steel, brass, and plastics. Can be created in both soft and hard materials, and only need a certain level of ductility.

Tools For Tapping Holes

types of taps

Broadly, there are two types of tapping tools: tap cutting tools and tap forming tools. A cutting tap is a tool that cuts or removes material from the hole surface to create spiral grooves, whereas a forming tap forms the material into the shape of the grooves, rather than removing it.

Machine Taps or Power Taps

These tapping tools are used in CNC drilling machines or other power machines to perfom automatic tapping, for both blind and through holes. Machine taps are made from tough materials like titanium nitride and carbide, allowing them to tap hard materials like tool steel.

Forming Taps

These tools create threads in the hole by deforming the material, not by removing it. Once the tool rotates inside the hole, it deforms the material, forming threads. It is typically suitable for softer metals like aluminum and copper.

Bottoming Taps

Since regular taps leave some length at the bottom of the hole, tapping blind holes requires a chamfered geometry at the end of the tool to cover that length. Bottoming taps are used for this purpose exactly.

Combined Drill Taps

These tools perform drilling and tapping operations simultaneously, with the drill bit at the end and the tapping mechanism located above it in the shank section. The drill bit at the end rotates and performs hole machining, removing chips upward. Then, the tapping section creates threads in the hole.

Extension Taps

These types of taps involve a long body and a few tapping flutes at the endpoint. This geometry allows for the creation of only a few threads at the end of a long blind hole.

Besides the taps we discussed above, there are many other specialized tapping tools, including spiral point taps, interrupted taps, pipe taps, gas taps, master taps, taper taps, and plug taps. If you are unsure which one is the best for your project, you can contact experts at ProleanTech.

How to Tap the Holes? The Process

Machine tapping

Choose the correct type of tap and size, which must be slightly larger than the hole diameter. Once you set the tap into the machine spindle and align the workpiece, the hole-tapping process begins (or you can also perform this manually with softer materials).

  • Determine The Drill Size

Select the correct drill size based on the fasteners you will be using later. The drilling hole must be slightly smaller than the diameter of the bolt or screw. You can use a tapping chart to match the correct drill bit with the tap size.

  • Hole Drilling

Locate the hole position in the workpiece and align it with the drill bit. The depth of the hole depends on the length of the threaded portion required. So, you need to consider the extra depth if you’re using a taper or other similar kind of taps.

  • Tap the Hole

After drilling, attach the chosen tap to the tap handle. First, rotate the tool clockwise until you feel resistance. Then, rotate half anticlockwise for each clockwise rotation to break the chips. If you are using a machine, attach the tool to the machine spindle, and the CNC codes do the rest of the work.

  • Cleaning the Hole

After completion of tapping, use compressed air to remove remaining chips, material dust, and test the fasteners.

Conclusion

Overall, tapping is a simple and effective process to create internal threads in large volumes. This is particularly suitable for materials with a low to medium hardness level. With the use of the correct type of tap, you can create accurate threads in a hole that perfectly fits with the corresponding screw or bolt. Most of the time, CNC machining services include tapping or threading itself. So, contact your manufacturer and consult regarding this.

FAQS

How do you tap a hole?

You can simply tap a hole by inserting and rotating the tapping tool inside a drilled hole. The size and pitch of the thread depend on the sizing of the tap you used.

What does it mean when a tap bottoms out

When a tap bottoms out, it means the tap reaches the bottom of the hole and is unable to create threads any further.

What is the difference between drilled and tapped holes?

A drilled hole refers to a regular hole created by a drill bit, whereas a tapped hole has internal threads to engage with a corresponding bolt.

What is the difference between clearance and tapped holes?

Clearance hole in tapped hole refers to a tiny space larger than the fastener’s outer diameter, which allows the fastener to pass through without damaging the material.

Which tap is used to start tapping a hole?

You can use a taper tap to start the tapping process. It helps guide tapping into the hole and prevents thread damage or binding.

Why is lubrication necessary in the tapping process?

Lubrication is necessary in the tapping process as it reduces friction, controls heat up, slows the tool’s wear, and helps in chip evacuation.
